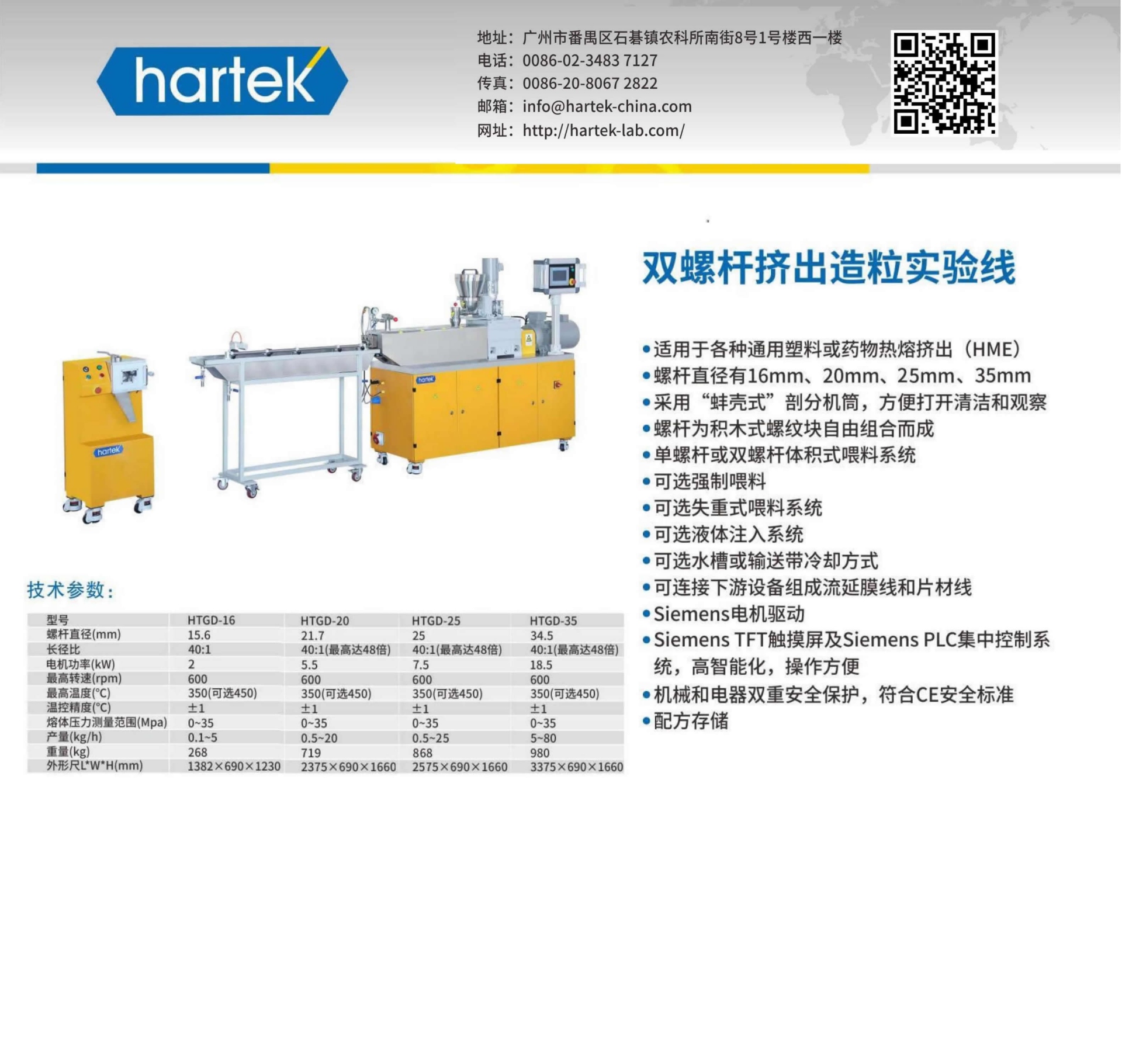

实验室同向平行双螺杆挤出机的产品性能:
* 剖分打开式机筒及积木螺杆结构，工艺调整方便快捷
* 快开式机头及换网器，清料换网快捷
* 触摸屏及siemens PLC集中控制系统，高智能化，操作方便
实验室同向平行双螺杆挤出机的应用范围:
* 通用塑料、工程塑料、弹性体等物料混合、混炼挤出造粒
* 复合材料的共混改性与反应挤出
* 高分子合金高效混炼
* 聚合物填充增强改性
技术参数
| 型号 | HTGD-11 | HTGD-16 | HTGD-20 | HTGD-25 | HTGD-35 |
| 螺杆直径(mm) | 11.7 | 15.6 | 21.7 | 25 | 34.5 |
| 长径比 | 40:1 | 40:1 | 40:1(可选48:1) | 40:1(可选48:1) | 40:1(可选48:1) |
| 电机功率(kW) | 1 | 2 | 5.5 | 7.5 | 18.5 |
| 最高转速(rpm) | 600 | 600 | 600 | 600 | 600 |
| 温控范围(℃) | 350.0 | 350.0 (可选450.0) | 350.0 (可选450.0) | 350.0 (可选450.0) | 350.0 (可选450.0) |
| 温控精度(℃) | ±1.0 | ±1.0 | ±1.0 | ±1.0 | ±1.0 |
| 熔体压力测量范围(Mpa) | 0~35.0 | 0~35.0 | 0~35.0 | 0~35.0 | 0~35.0 |
| 熔体压力测量精度 | 0.2%F.S | 0.2%F.S | 0.2%F.S | 0.2%F.S | 0.2%F.S |
| 产量(kg/h) | 0.1-1 | 0.1~5 | 0.5~20 | 1~30 | 5~80 |
| 重量 (kg) | 135 | 268 | 719 | 785 | 908 |
| 外形尺寸 L×W×H | 1200×400×550mm | 1382×690×1230mm | 2375×690×1630mm | 2575×690×1630mm | 3375×690×1660mm |
Technical Parameters
| Model | HTGD-11 | HTGD-16 | HTGD-20 | HTGD-25 | HTGD-35 |
| Screw Diameter(mm) | 11.7 | 15.6 | 21.7 | 25 | 34.5 |
| L/D Ratio | 40:1 | 40:1 | 40:1(up to 48:1) | 40:1(up to 48:1) | 40:1(up to 48:1) |
| Motor Power(kW) | 1 | 2 | 5.5 | 7.5kw | 18.5 |
| Max. Speed(rpm) | 600 | 600 | 600 | 600 | 600 |
| Max. Temp.(℃) | 350.0 | 350(optional 450) | 350(optional 450) | 350.0 (optional 450) | 350(optional 450) |
| Temp. Accuracy(℃) | ±1.0 | ±1.0 | ±1.0 | ±1.0 | ±1.0 |
| Pressure Measuring Range(Mpa) | 0~35.0 | 0~35.0 | 0~35.0 | 0~35.0 | 0~35.0 |
| Pressure Measuring Accuracy | 0.2%F.S | 0.2%F.S | 0.2%F.S | 0.2%F.S | 0.2%F.S |
| Output (kg/h) | 0.1-1 | 0.1~5 | 0.5~20 | 1~30 | 5~80 |
| Weight(kg) | 135 | 268 | 719 | 785 | 908 |
| Dimension | 1200×400×550mm | 1382×690×1230mm | 2375×690×1630mm | 2575×690×1630mm | 3375×690×1660mm |
