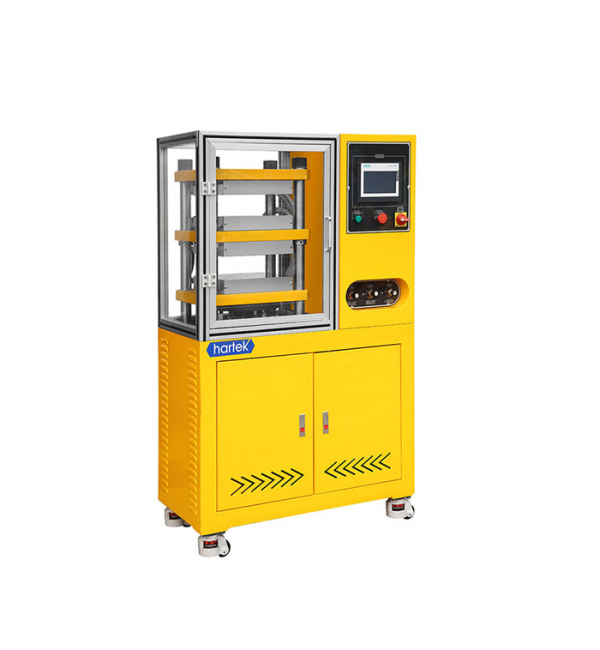

1. laboratory small tablet press:

Laboratory small-scale tablet press is suitable for rubber, plastic, resin and other polymer materials compression molding, equipment equipped with programmable liquid crystal display, can set pressure, temperature, time and exhaust times and seconds, man-machine interface operating system, production process dynamic real-time display and monitoring, molding program automatically completed. The machine has the advantages of simple structure, high pressure, wide applicability and high efficiency.

2, laboratory parameters of small tablet press:

2.1 pressure: 30 tons

2.2 temperature range: ~300 C at room temperature.

2.3 temperature control accuracy: + 1 degrees centigrade.

2.4 heating mode: stainless steel heating rod.

2.5 pressing plate size: 300 x 300 x 60mm

2.6 opening distance: 0~150mm

2.7 pressboard material: SKD chrome molybdenum alloy

2.8 pressure plate hardness: hard chrome plating on the surface. The surface hardness is more than HRC60

2.9 work layer: 1 work area, upper and lower pressure plate with heating and cooling function.

2.10 cooling mode: through water cooling, after heating process, the system automatically switches to cooling state.

2.11 gradient pressure: 2 segments, first and second stages can be preset.

2.12 exhaust times: 0~10 times

2.13 exhaust pause: Yes.

2.14 pressure sensor: 0-20Mpa

2.15 oil pressure system: GPY oil pump drive cylinder.

Equal speed control mode

Pump delay shutdown function

2.16 oil pressure medium: Mobil 32# antifreeze hydraulic oil.

2.17 cylinder speed: 11~50mm/S dual speed function, quick clamping and slow locking.

2.18 security protection: self locking safety viewable door

2.19 outline size (LXWXH): 950 x 500 x 1470mm

2.20 control system: SIEMENS control system, 7 Inch Touch screen. Display operation page.

2.21 low voltage appliances: French Schneider brand
