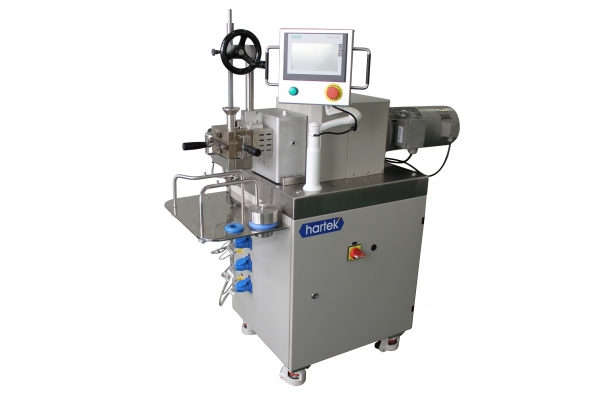

Performance of laboratory compact mixer:

* brand motor drive, steady speed control.

* rotor type can be selected according to material and process.

* electric heating and PID temperature control, fast heating speed and precise temperature control.

* dual protection of machinery and electrical appliances

The scope of application of laboratory mixer is:

* mixing and plasticizing of common rubber materials

* filling, mixing and dispersing of rubber materials

* design of rubber formula

* thermal pretreatment of common rubber materials

Technical parameters of Technical Parameters / laboratory compact mixer:

Model / model HTK-55

Mixing Chamber Volume / mixer cavity volume 55ml

Rotor Speed / rotor speed 0~200rpm

Rotor Speed Ratio / rotor speed ratio 2:3

Rotor Type / rotor type Roller, Banbury

Max. Temp. / maximum temperature 350 C

Temp. Control Accuracy / temperature control accuracy + 1 c

Heating / Cooling Method / heating / cooling mode Electrical heating / Compressed air cooling

Drive Power / driving power 3kW

Total Power / total power 4.5kW

Weight / weight 200kg

Dimension / outline size L*W*H 1250 x 690 x 1350mm
