A new preparation technology is mainly used to improve the dissolution of insoluble drugs and prepare sustained and controlled release preparations.

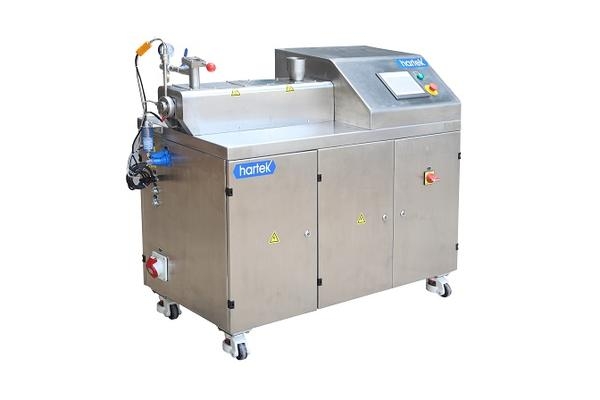

Product performance of pharmaceutical hot melt twin screw extruder:

* split cylinder and screw block type structure, convenient and quick process adjustment.

* touch screen and Siemens PLC centralized control system is highly intelligent and easy to operate.

The application scope of the pharmaceutical hot melt twin screw extruder is:

* mixing, mixing and extrusion of nano mixture, biopolymer and medical polymer material.

Technical parameters of Technical Parameters / pharmaceutical hot melt twin screw extruder:

Model / model HTGD-16

Screw Diameter / screw diameter 15.7mm

L/D Ratio / aspect ratio L/D 40

Motor Power / motor power 2kW

Max. Speed / maximum speed 50~600rpm

Heating/Cooling Method / heating / cooling mode Electric heating / Air cooling

Max. Temp. / temperature range 350 C

Temp. Accuracy / temperature control accuracy + 1 c

Pressure Measuring Range / melt pressure measurement range 0~35MPa

Pressure Measuring Accuracy / melt pressure measurement accuracy 0.2%F.S

Output / yield 0.2-2kg/h

Weight / weight 480KG

Dimension / outline size L * W x H 1200 * 590 * 1630mm
