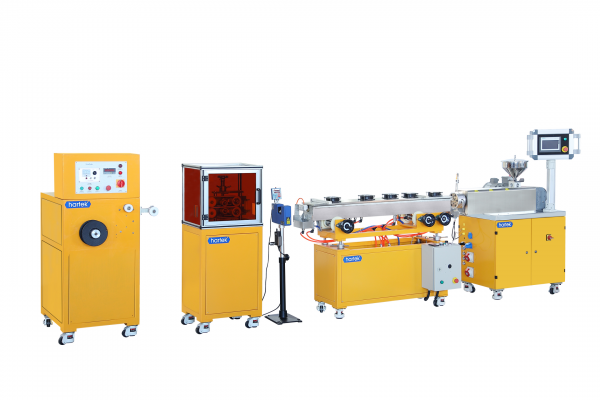

Product performance of small 3D printing consumables extrusion line:

* professional manufacture of screw and barrel, with high machining accuracy and quality assurance.

* world variable frequency motor drive, screw speed control is stable and reliable.

* touch screen and Siemens PLC centralized control system is highly intelligent and easy to operate.

The application scope of small 3D printing consumables extrusion line:

*3D printing consumables production

* Medical pipe production

*PLA/ ABS/ TPU/ PA/ PC/ PEEK

Technical parameters of Technical Parameters / small 3D printing consumables extrusion line:

Model / model HTES-20

Screw Diameter / screw diameter 25mm

L/D Ratio / aspect ratio L/D 28

Motor Power / motor power 4kW

Output / yield 0.5~5kg/h

Product specifications / product specification diameter DN1.75mm

Tolerance of outer diameter / outer diameter tolerance + 0.05mm

Max. Temp. / maximum temperature 350 C / 450 C

Temp. Control Accuracy / temperature control accuracy + 1 c

Dimension / outline size L * W x H 9200 * 1200 * 1670mm
