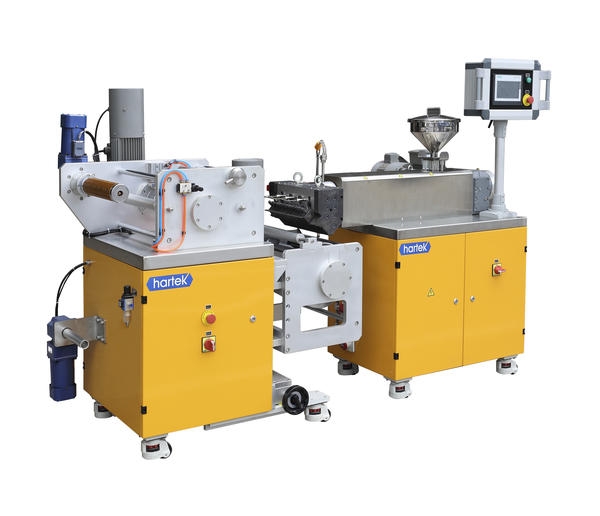

The performance of the small tape casting machine in laboratory is as follows:

* SIEMENS PLC control, touch-screen human-machine interface.

* dual protection of machinery and electrical appliances

* constant tension winding

* adjusting clearance between casting roller and casting mould head by lifting mechanism.

The scope of application of small tape casting machine in laboratory is:

Testing and evaluation of tape casting properties of polymer materials

* new product formulation development

* optimization of production process parameters

* narrow film production on a small scale.

Inspection and evaluation of fish eye, crystal spots and other defects

Technical parameters of Technical Parameters / Lab small tape casting machine:

Model / model HTCS-20

Screw Diameter / screw diameter 20mm

L/D Ratio / aspect ratio L/D 28

Max. Speed / maximum speed 120rpm

Max. Temp. / maximum temperature 350 C

Temp. Control Accuracy / temperature control accuracy + 1 c

Pressure Measuring Range / melt pressure measurement range 0~35MPa

Pressure Measuring Accuracy / melt pressure measurement accuracy 0.2%F.S

Casting Roller Speed / tape roller speed 0.5~5 m/min

Traction Speed / traction speed 0.5~5 m/min

Output / yield 0.5~5kg/H

Weight / weight 620kg

Dimension / outline size L * W x H 3059 * 933 * 1660mm
