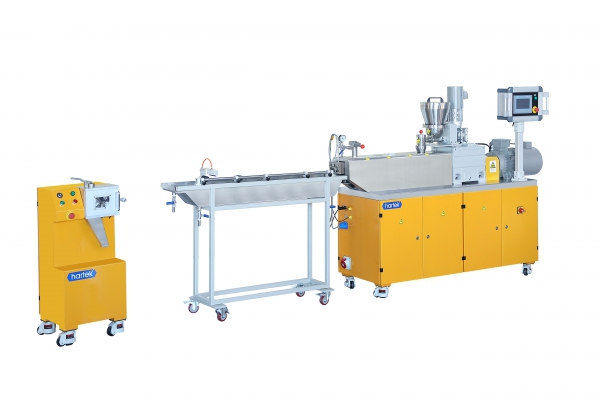

Product performance of Laboratory Co rotating twin screw extruder:

* split open cylinder and block screw structure, and process adjustment is convenient and quick.

* quick opening head and mesh changer, clear material and quick change.

* touch screen and Siemens PLC centralized control system is highly intelligent and easy to operate.

The application scope of Laboratory Co rotating twin screw extruders:

* mixing, mixing and granulating of general plastics, engineering plastics, elastomers and other materials.

* blending modification and reactive extrusion of composites

* efficient mixing of polymer alloys

* polymer filled reinforced modification

Technical parameters of Technical Parameters / Laboratory Co rotating twin screw extruder:

Model / model HTGD-20

Screw Diameter / screw diameter 21.7mm

L/D Ratio / aspect ratio L/D 40

Motor Power / motor power 5.5kW

Max. Speed / maximum speed 60~600rpm

Heating/Cooling Method / heating / cooling mode Electric heating / Air cooling

Max. Temp. / temperature range 350 C

Temp. Accuracy / temperature control accuracy + 1 c

Pressure Measuring Range / melt pressure measurement range 0~35MPa

Pressure Measuring Accuracy / melt pressure measurement accuracy 0.2%F.S

Output / yield 20kg/h

Weight / weight 680kg

Dimension / outline size L * W x H 2375 * 690 * 1630mm
